Cabinet air conditioning is actively cooling with compressor, and it will remove the heat inside the cabinet to outside. It also can keep the dust and heat outside the cabinet, avoiding problems from using fan. The inside cabinet can be maintained at an ideal temperature for electrical components which effectively guarantees the stability of the electronic equipment and improves the reliability of the whole system.

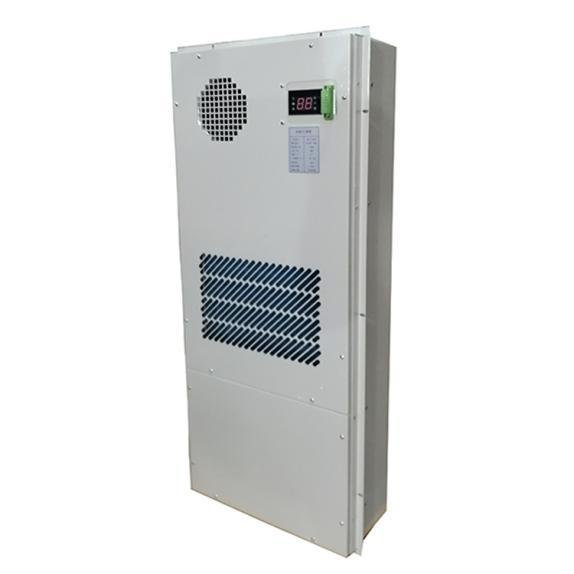

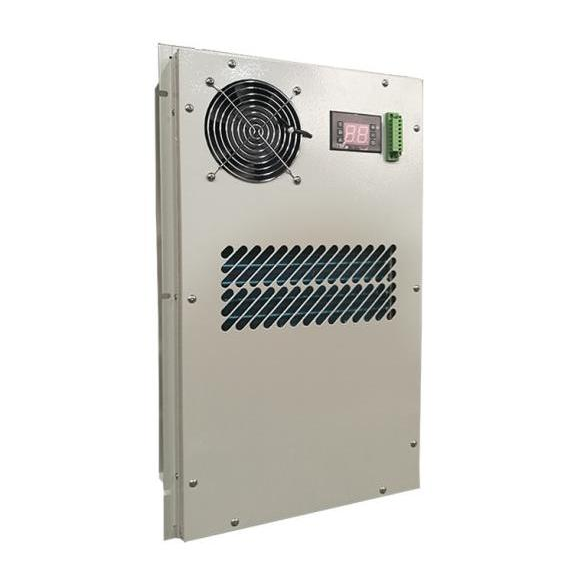

Model :
CN-OAC0300Cooling capacity(L35/L35) :
300WVoltage :
220VAC/110VAC±15% 50/60HzRated Power(L35/L35) :
169WRated Current (220VAC) :
0.77ARated Current (110VAC) :
0.84ACircuit max pressure :
26barRefrigerant :
R134a*250gHeating Power(Optional) :
500WWorking temperature :
-5~55℃ -40~55℃(with heater)Noise :
56dBWeight :
18KgIP Grade :
IP55Dimension(W×D×H) :
353×165×583mm

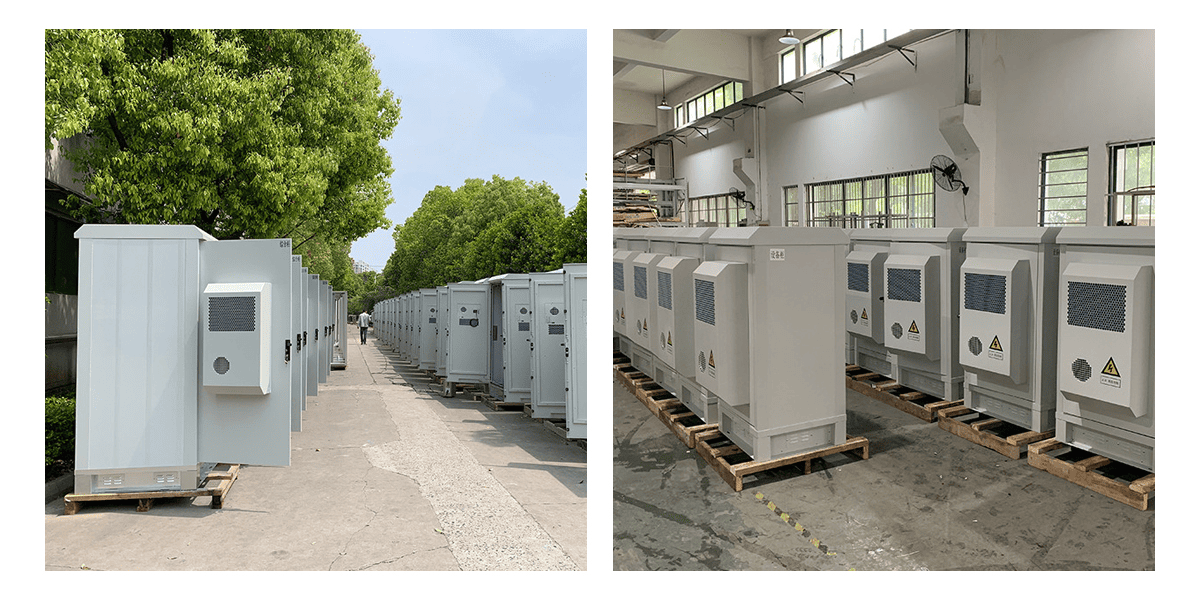

Outdoor Radio Base Stations / Telecom Cabinets
Outdoor Solar Powered Telecom Cabinets
Outdoor Power Supply Cabinets
Outdoor Wind Power Control Cabinets / Shelters
Steps:

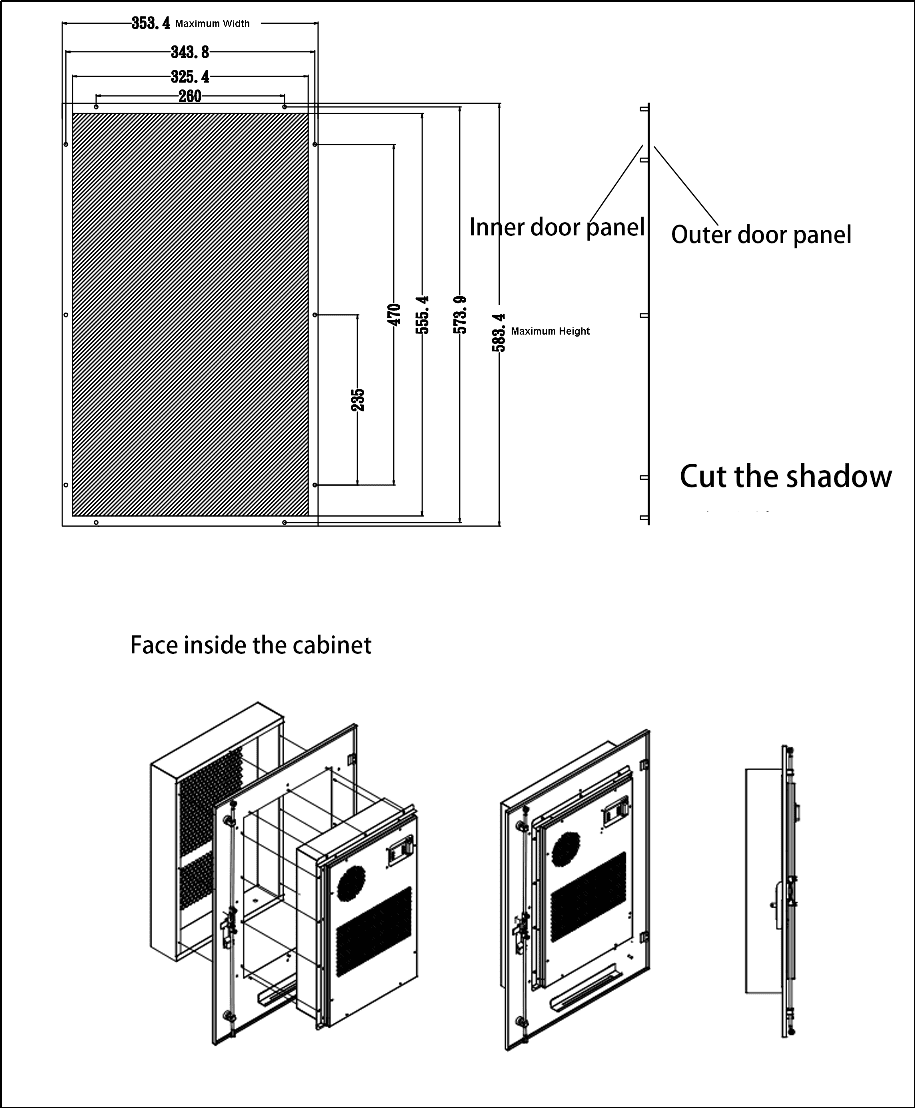

DIAGRAM
