100-600KVA 3-Phase Tower UPS for High-Capacity Power Protection

100-600KVA 3-Phase Tower UPS for High-Capacity Power Protection

The 100-600KVA 3 Phase Tower UPS is a robust and scalable uninterruptible power supply designed for large-scale enterprises and industrial applications. It features advanced three-phase technology, double-conversion online protection, and a high-efficiency design to ensure continuous and reliable power for critical systems. With its modularity, intelligent monitoring, and comprehensive protection, it delivers unmatched performance and flexibility for data centers, communication networks, and industrial operations.

  • Voltage Range :

    304~478VAC(L-L)full load; 304~228VAC(L-L) power derate from 100% to 75%
  • Input Phase :

    3 phase in / 3 phase out
  • Rate Voltage :

    380/400/415VAC(L-L); 220/230/240 VAC(L-N)
  • Frequency Range :

    40-70Hz
  • Power Factor :

    ≧ 0.99 @ full load

Uninterruptible Power Supply Products
With high efficiency and high power density, comprehensive protection for critical loads
FEATURES
  • # High Power Capacity
    Supports 100-600KVA output to meet the demands of large-scale enterprises and industrial loads.
  • # Double-Conversion
    Provides stable and clean sine wave output, ensuring continuous operation of critical equipment.
  • # Three-Phase Output
    Provides a balanced three-phase output, which is ideal for large-scale applications where high efficiency and stable power supply are needed.
    •
    •
  • ALL TYPES OF UPS SERIES

The groundbreaking improvements in power supply reliability, availability, and maintainability of critical equipment have enabled us to offer customers comprehensive and personalized complete solutions for electronics power supply.



Smart Adaptability



Wide range of voltage and frequency,adapt to different grid and generator input.

Intelligent system self-diagnosis schemerich fault recording, large capacity ofhistory record storage space.

Top/bottom cable entry, flexible for different field installation.

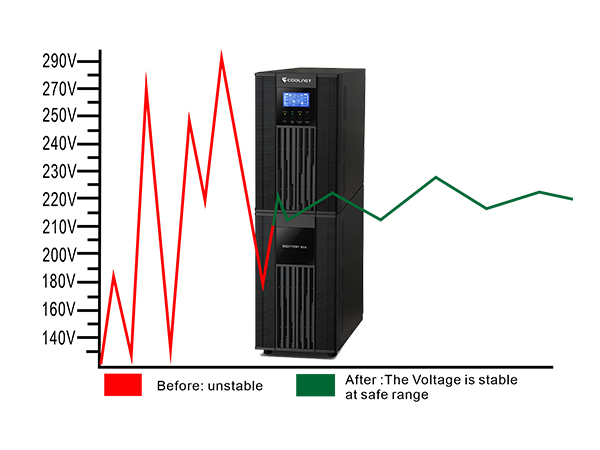

Strong Voltage Stablizer



3P/3P pure online double transformationproducts,support 380/400/415V,50/60Hz power grid system, to providethe ideal power supply quality and load protection.

High performance and efficiency, inputPF>0.99,THDi<3%, efficiency >96%.Full DSP control, flexible and robustdigital control for rectifier, inverter andbattery management.

Redundancy fan design in power modulincreasing the system reliability and tolerance.
